Description

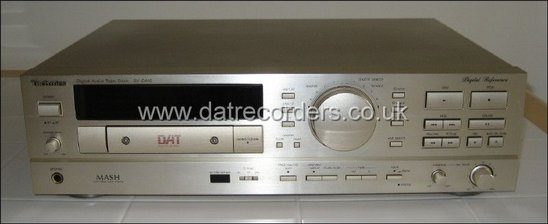

The Technics SV-DA10 was available in black or gold.
It is almost identical to the professional Panasonic SV-3200.
Includes a very practical shuttle search and incredible fast FF/REW... 400x speed
Very rugged and fast tape transport mechanism.
Features
- Front panel shuttle wheel
- 1 bit D/A and D/A convertors
- Program, absolute and time-remain display
- Recording time: 120 min (standard) or 240 min (LP)
- Tape speed: 8.15mm/s (standard) or 4.075mm/s (LP)
- D/A conversion: 16 bit linear Sampling frequency: 48kHz, 44.1kHz, 32kHz
- 1/4 inch headphone socket with volume control
- Search speed up to 400 times normal playback speed.
- FF/Rewind time: 27 secs (2 hour DAT tape)
- Fade in and fade out buttons.
- Comprehensive support for program index numbers.
- Timer operation.
Technical Specifications
| Tape recording system | Rotary head type DAT |
| Head type | Amorphous ferrite composite type |
| Cylinder diameter | 30 mm |
| Cylinder rotation speed | 2000 rpm (recording and playback) |
| Sampling frequencies (record) | 48 kHz / 44.1 kHz / 32 kHz (automatically selected during digital recording) |
| Sampling frequencies (playback) | 48 kHz / 44.1 kHz / 32 kHz (selected automatically) |
| Quantization | 16-bit linear |
| Number of channels | 2 (stereo) |
| Tape speed | 8.15 mm/sec / 12.225 mm/sec (selected automatically) |
| Search speed | Up to 400 times normal playback speed |
| FF/Rewind time | Approx. 27 sec. (2 hours DAT tape) |
| Frequency response (digital, 48 kHz) | 2Hz~22,000 Hz |
| Frequency response (digital, 44.1 kHz) | 2Hz~20,000 Hz |
| Frequency response (digital, 32 kHz) | 2Hz~15,000 Hz |
| Dynamic range (digital) | Greater than 95 dB (IHF A-weighted) |
| S/N ratio (digital) | Greater than 107 dB (IHF A-weighted) |
| THD (digital) | Less than 0.003% (1 kHz) |
| Wow and flutter (digital) | Unmeasurable |
| Frequency response (analog) | 2Hz~22,000 Hz (±0.5 dB) |
| Dynamic range (analog) | Greater than 90 dB (IHF A-weighted) |
| S/N ratio (analog) | Greater than 90 dB (IHF A-weighted) |
| THD (analog) | Less than 0.007% (1 kHz) |
| Wow and flutter (analog) | Unmeasurable |
| Analog input minimum level | 140 mV (-12 dB rec level) |
| Analog input impedance | 47 kΩ |
| Analog output full-scale level | 2V |
| Analog output impedance | 600Ω |
| Headphone output | Max. 30 mW + 30 mW / 32Ω (matching impedance 8~600Ω) |
| Digital input | Coaxial 75Ω / Optical (with selector switch) |
| Digital output | Coaxial 75Ω / Optical (parallel output) |
| Power supply | AC 50/60 Hz, 240V |
| Power consumption | 27W |
| Dimensions | 430(W) × 122(H) × 339(D) mm |
| Weight | 5.7 kg |
