Description

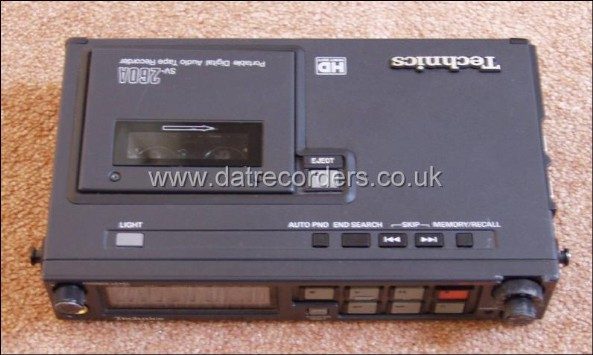

The Technics SV-260 is a heavy duty professional portable DAT recorder with XLR microphone inputs and rechargeable batteries.
XLR Inputs can be used for line or microphone, selectable by a switch.
Microphone limiter switch.
Analog line out via phono (RCA) sockets.
Coaxial Digital output phono (RCA) socket .
Recording at 48 kHz sampling, and playback of 44.1 kHz and 48 kHz.
Technical Specifications
| Recording system | Rotary-head DAT |
| Sampling frequency (recording) | 48 kHz |
| Sampling frequency (playback) | 44.1 kHz, 48 kHz (automatically switched) |
| Decoding | 16-bit linear |
| Number of channels | 2 (stereo) |
| Frequency response | 10Hz~22 kHz, +0.5 dB / -1.5 dB |
| Dynamic range | More than 87 dB |
| S/N ratio | More than 88 dB (full scale level) |
| Total harmonic distortion | Less than 0.05% (input level +4 dBm, output level -14 dBs) |
| Wow & flutter | Unmeasurable |
| Line input level (attenuator on) | +4 dBs |
| Line input level (attenuator off) | -10 dBs |
| Line input impedance | More than 10 kΩ, balanced, transformerless |
| Mic input level (attenuator on) | -60 dBs |
| Mic input level (attenuator off) | -74 dBs |
| Mic input impedance | More than 10 kΩ, balanced, transformerless |
| Line output level | -14 dBs (RCA phono jacks ×2) |
| Line output impedance | 1.2 kΩ, unbalanced |
| Headphone output | 20 mW + 20 mW, 16Ω load |
| Digital output | Coaxial 75Ω (cable supplied) |
| Head | Amorphous Ferrite mixed type |
| Cylinder | 15 mm diameter, wrap 180 degrees |
| Cylinder rotation speed | 2000 rpm (record/playback) |
| Tape speed | 8.15 mm/sec (playback: 8.15/12.225 mm/sec, switched automatically) |
| Search speed | Approx. 60 times normal speed (maximum) |
| FF/REW time | Approx. 120 sec. (with 120-minute tape) |
| Power supply (AC) | AC 110-120/220-240V, 50/60 Hz, 20W (with supplied AC adaptor) |
| Power supply (DC) | DC 6V, approx. 4.3W (with supplied rechargeable battery pack) |
| Battery life | Approx. 2.2 hours continuous recording and playback (with 8-hour battery charge) |
| Dimensions | 228(W) × 44(H) × 137(D) mm |
| Weight (with battery) | 1.45 kg |
| Weight (without battery) | 1.08 kg |
Gallery
Documents
PDF downloads delivered instantly after payment via PayPal. Download links expire 48 hours after purchase.
User Manual
Technics SV-260 User Manual
£4.99
/ PDF download
By purchasing you agree to our terms and conditions.
Service Manual

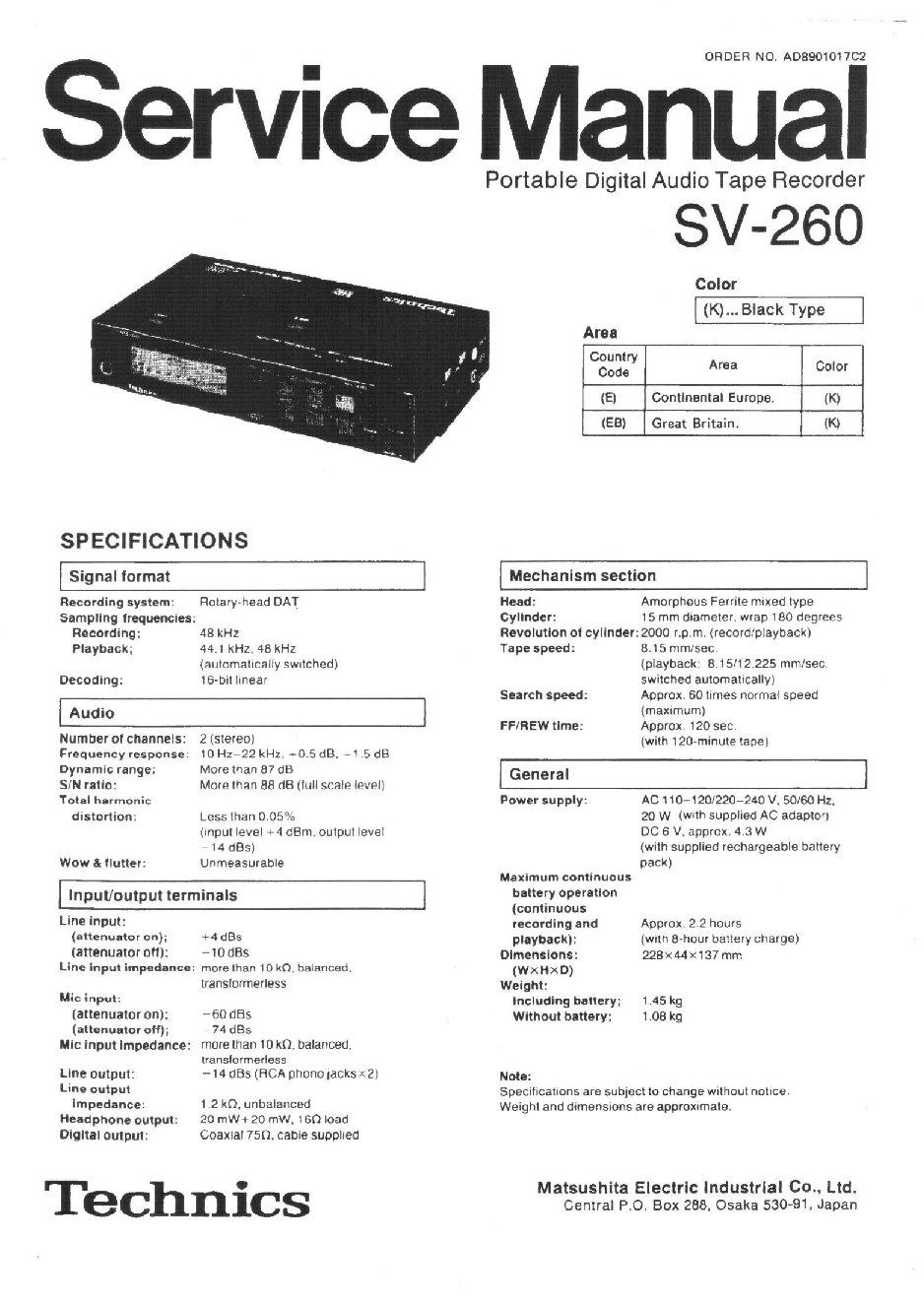

Technics SV-260 Service Manual
