The TEAC R-9 is a high-performance, studio-grade Digital Audio Tape (DAT) recorder launched in 1997. It served as the direct technological successor to the TEAC R-10, taking heavy layout and mechanism inspiration from TASCAM's highly successful professional workhorse, the TASCAM DA-30 MkII.

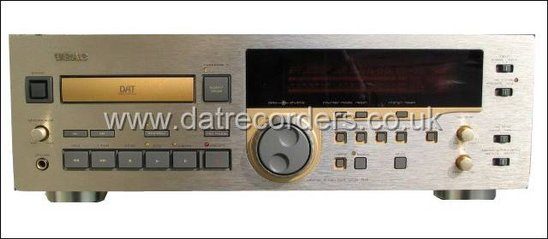

Jog / Shuttle Dial
Unlike the R-10, the R-9 introduced a professional front-panel shuttle dial, allowing tape operators to scrub, cue, and listen to audio at varying speeds from 1× to 16× for rapid editing.
Long Play (LP) Support
At a 32 kHz sampling frequency, the deck can continuously record or play back for up to 4 hours on a standard 120-minute DAT tape.
Studio Input Calibration
Features dual L/R-independent analogue level knobs alongside a hardware Manual / Reference toggle. Switching to reference bypasses the manual pots entirely, enforcing an exact fixed input level suitable for integrated studio racks.
Advanced ID Subcoding
Features five selectable automated threshold levels (from -48 dB down to -72 dB) to auto-detect and write track start IDs precisely between songs.
| Category | Rotary Head Digital Audio Tape Recorder |
| Tape speed (STANDARD) | 8.15 mm/sec (12.225 mm/sec playback also supported) |
| Tape speed (LONG) | 4.075 mm/sec |
| Recording time | 120 minutes (STANDARD) / 240 minutes (LONG) with 120-min cassette |
| Head drum speed | 2,000 rpm (STANDARD) / 1,000 rpm (LONG, during record) |
| Fast winding | 70 seconds approx. (with R-120 cassette) |
| Error correction | Octet (eightfold) correction |
| Number of channels | 2 |
| Quantization | 16-bit linear (STANDARD) / 12-bit non-linear (LONG) |
| Sampling rate (48 kHz) | Play/record, digital/analog |
| Sampling rate (44.1 kHz) | Play/record, digital/analog |
| Sampling rate (32 kHz) | Play/record digital only (STANDARD) / digital/analog (LONG) |
| Frequency response (STANDARD) | 10Hz~22,000 Hz ±0.5 dB |
| Frequency response (LONG) | 10Hz~14,500 Hz ±0.5 dB |
| S/N ratio | Better than 92 dB |
| Dynamic range | Better than 93 dB |
| THD (STANDARD) | Less than 0.004% (1 kHz) |
| THD (LONG) | Less than 0.07% (1 kHz) |
| Channel separation | Better than 85 dB (at 1 kHz) |
| Wow and flutter | Unmeasurable (less than ±0.001%) |

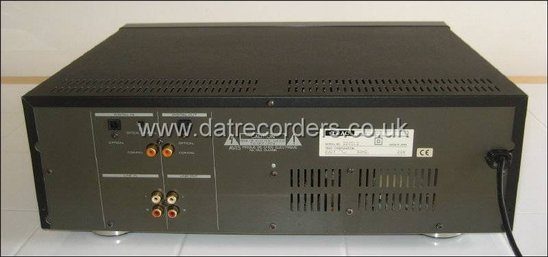

| Analog input connector | RCA jack ×2 |
| Analog input nominal level | 500 mV |
| Analog input impedance | 50 kΩ unbalanced |
| Digital coaxial input | ×1 |
| Digital optical input | ×1 |
| Analog output connector | RCA jack ×2 |
| Analog output maximum level | 2.0V |
| Analog output nominal level | 500 mV |
| Analog output impedance | 430Ω unbalanced |
| Headphone connector | 1/4" jack ×1 |
| Headphone output level | 100 mW + 100 mW (8Ω load) |
| Digital coaxial output | ×1 |
| Digital optical output | ×1 |
| Power supply (USA/Canada) | 120V AC, 60 Hz |
| Power supply (UK/Australia) | 230V AC, 50 Hz |
| Power supply (Europe) | 230V AC, 50 Hz |
| Power supply (General Export) | 100/120/230/240V AC, 50-60 Hz |
| Power consumption | 28W |
| Dimensions | 442(W) × 150.5(H) × 355(D) mm |
| Weight | Approx. 9.3 kg |

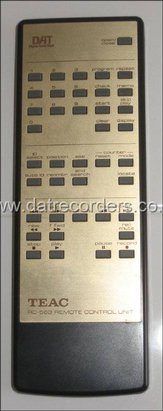

| Accessories | Wireless Remote Control Unit RC-563 (1), Batteries SUM-3 AA R6 ×2, Input-output connection cord RCA type ×2 |
