Description
The DA-60 was designed for professional use and the features include the following:
The DA-60 could be upgraded to the DA-60MKII by adding the sync card.
Features
- 4 head, 4 D-D mechanism
- Punch in/out with digital crossfade
- Variable speed playback
- Auto Cue/Memory Start ensuring instant start from the exact point
- Autolocation
- Fade in and out of play or record
- Digital Audio interface conforming to AES/EBU standards
- External sync referenced to word sync signal
- Parallel data port and RS-422 seial port for interface to external controllers
- Record and read of LSMPTE/EBU/FILM timecodes following IEC standards
- Timecode generator integrated
- Timecode controlled synchronization
- Slaving to an incoming composite video or a film sync signal.
Technical Specifications
| Sample Rates & Bit Rates | 48kHz 44.1kHz (Record and Playback) |
| Frequency Response | 5Hz-22kHz ±0.5dB Standard Play |
| Signal to Noise Ratio | >98dB |
| Dynamic Range | >98dB |
| Total Harmonic Distortion | <0.004% (1kHz) |
| Channel Separation | >90dB (1kHz) |
| Wow/Flutter | Unmeasurable (<±0.001%) |
| Inputs Analog: Digital | Balanced XLR SPDIF / AES-EBU, XLR (auto select) |
| Outputs Analog: Digital: Monitor | Balanced XLR SPDIF, XLR RCA (phono) x 2 |
| Timecode I/O | 2Vp-p balanced, XLR |
| Control I/O | Optional Remote |
| Power Consumption | 58W / 230V AC, 50/60Hz |
| Dimensions | 132x483x379 mm |
| Weight | 11.5Kg |

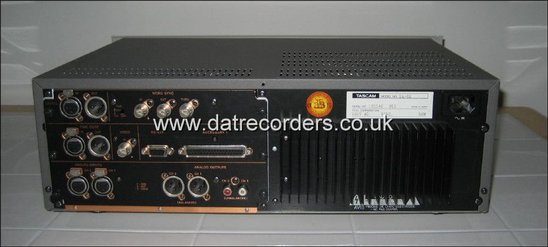

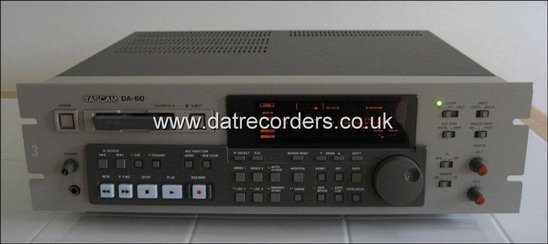

Gallery
Documents
PDF downloads delivered instantly after payment via PayPal. Download links expire 48 hours after purchase.
User Manual

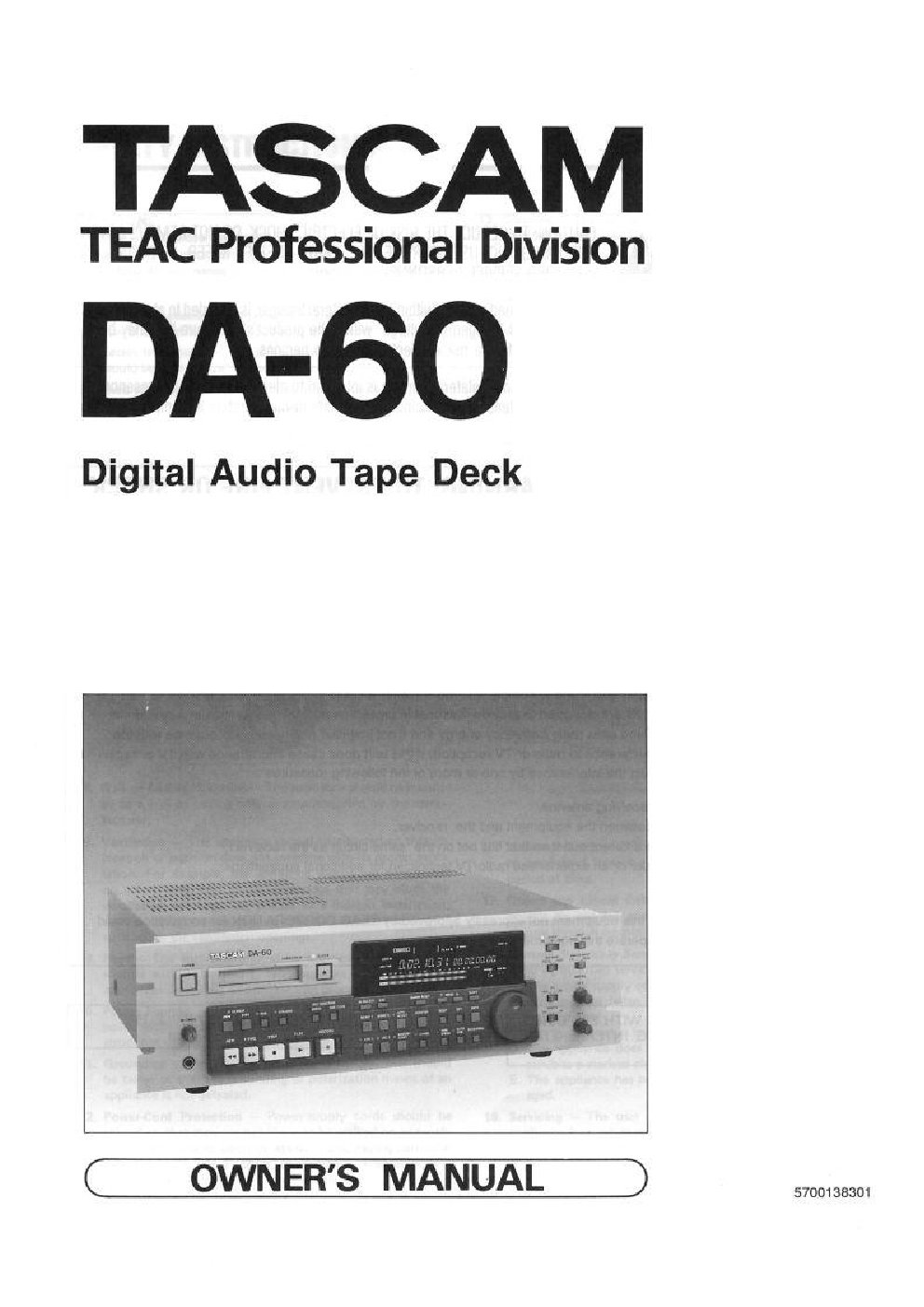

Tascam DA-60 User Manual
