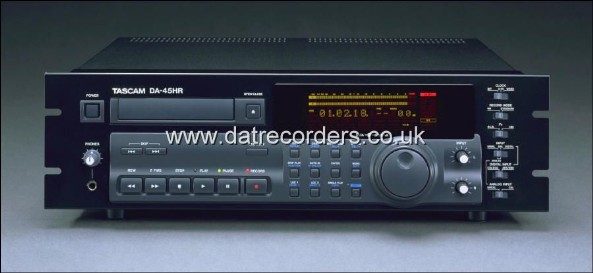

The DA-45HR builds on the feature set from the DA-40, and brings the machine into the 24 bit recording realm.
The DA-45HR is the world's first 24-bit DAT recorder. It is capable of writing full 24 bit, high resolution data to the standard DAT tape. This allows you to have an affordable, simple solution for 24 bit recording. The DA-45HR can also serve as a standard 16 bit DAT solution, reading and writing DATs created on standard DAT machines.
Since the DA-45HR can serve as both a 16 bit and 24 bit DAT recorder, it can be installed in place of a standard 16 bit DAT recorder. You don't need two separate machines to have dual functionality.

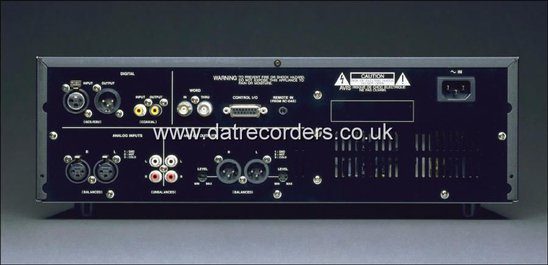

Another helpful feature is the Word Clock I/O on the DA-45HR. Word Clock In and Thru allow you to clock to an external source on playback. This is key for integration into larger digital set-ups with a central clock source.
As mentioned, the DA-45HR implements the same advanced functions that the DA-40 offers, including track names, locate points, single play, selectable SCMS status, parallel and serial control, and calibrated I/O.

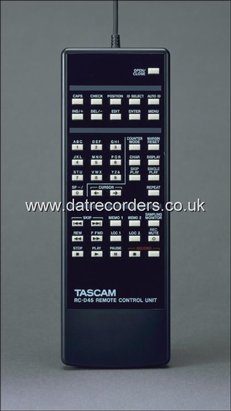

The optional RC-D45 wired remote is designed to work with the DA-45HR.
Original suggested retail price was 1212 GBP.
| Tape speed (SP) | 8.15 mm/s |
| Tape speed (HR) | 16.3 mm/s |
| Recording time SP (120-min cassette) | 120 minutes |
| Recording time HR (120-min cassette) | 60 minutes |
| Head drum speed (SP) | 2,000 rpm |
| Head drum speed (HR) | 4,000 rpm |
| Fast wind time | 60 seconds end-to-end (120-minute tape) |
| Sampling frequency | 44.1 kHz, 48 kHz |
| Recording resolution (SP) | 16-bit linear |
| Recording resolution (HR) | 24-bit linear (rounded 24-bit A/D conversion) |
| D/A conversion (HR playback) | Rounded 8× oversampled 20-bit with optional dithering |
| Frequency response (SP) | 20Hz~20,000 Hz ±0.5 dB |
| Frequency response (HR) | 20Hz~20,000 Hz ±0.5 dB |
| S/N ratio (SP) | >105 dB |
| S/N ratio (HR) | >112 dB (recording) / >105 dB (overall) |
| Dynamic range (SP) | >100 dB |
| Dynamic range (HR) | >113 dB (recording) / >105 dB (overall) |
| THD (SP, 1 kHz, FS-0.1 dB) | <0.005% |
| THD (HR, 1 kHz, FS-0.1 dB) | <0.002% (recording) / <0.004% (overall) |
| Channel separation | >95 dB (1 kHz, FS) |
| Wow and flutter | Unmeasurable (<0.001%) |
| Balanced analog input connector | XLR-3-31 |
| Balanced analog input nominal level | +4 dBu (FS = -16/-18/-20 dBu) |
| Balanced analog input maximum level | +20/+22/+24 dBu |
| Balanced analog input impedance | >10 kΩ |
| Unbalanced analog input connector | RCA |
| Unbalanced analog input nominal level | -10 dBV |
| Unbalanced analog input maximum level | +6 dBV (2 Vrms) |
| Unbalanced analog input impedance | >50 kΩ |
| Balanced analog output connector | XLR-3-32 |
| Balanced analog output nominal level | +4 dBu (FS = -16/-18/-20 dBu) |
| Balanced analog output maximum level | +20/+22/+24 dBu |
| Balanced analog output impedance | <27Ω |
| Unbalanced analog output connector | RCA |
| Unbalanced analog output nominal level | -10 dBV |
| Unbalanced analog output maximum level | +6 dBV (2 Vrms) |
| Unbalanced analog output impedance | <700Ω |
| Headphone connector | 1/4" stereo jack |
| Headphone output | 2 × 50 mW into 32Ω |
| Balanced digital output connector | XLR-3-32 |
| Balanced digital output format | IEC958 Type I (AES/EBU) / IEC958 Type II (SPDIF) |
| Unbalanced digital output connector | RCA |
| Unbalanced digital output format | IEC958 Type I (AES/EBU) / IEC958 Type II (SPDIF) |
| Balanced digital input connector | XLR-3-31 |
| Balanced digital input format | IEC958 Type I (AES/EBU) |
| Unbalanced digital input connector | RCA |
| Unbalanced digital input format | IEC958 Type II (SPDIF) |
| Word sync input | BNC, 75Ω |
| Word sync thru | BNC, 75Ω, auto-terminating |
| Parallel I/O port | 15-pin D-sub connector |
| Remote control connector | 3.5 mm mini-jack (RC-D45 only) |
| Power supply (USA/Canada) | 120VAC, 60 Hz |
| Power supply (Europe/UK) | 230VAC, 50 Hz |
| Power supply (Australia) | 240VAC, 50 Hz |
| Power consumption | 40W |
| Dimensions | 482(W) × 140.5(H) × 368(D) mm |
| Weight | 8.3 kg |
| Accessories | Power cord (1), Rack mounting kit (1) |
