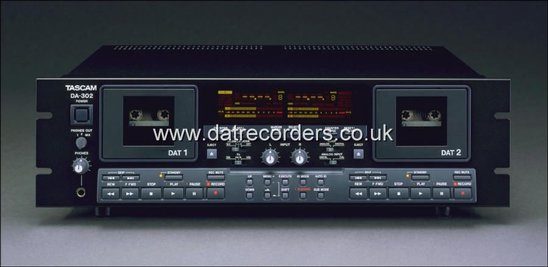

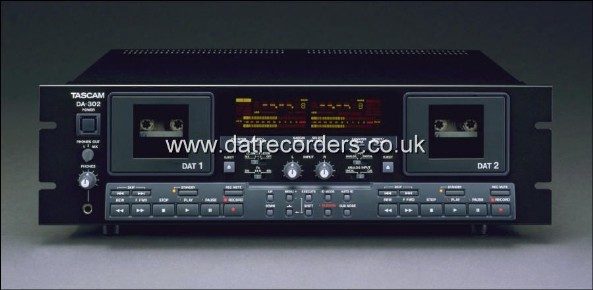

The DA-302 is the world's only dual DAT recorder, bringing the convenience of a dual cassette deck to the DAT format.
The main advantages to the DA-302 are in DAT duplication, long play/record applications, or live production with multiple sources.
The DA-302 can duplicate DATs at 2X, offering tremendous time savings when making back-ups, or distribution copies. Time code and 24 bit DATs can be duplicated at 1x, offering a substantial savings over purchasing two time code DATs or two 24 bit DAT recorders.
For long play or long record applications, multiple DA-302s can be linked. This allows each well to engage sequentially for automated playback or recording.
Also, each DAT in the DA-302 can act independently, allowing one source to play, and another to record. This is ideal for use in shows, allowing one DAT to play back sound cues while the other records the show. Or, both DATs can be used in playback simultaneously for feeding independent sources to two different zones, or even for overlaying cues.
The DA-302 offers unbalanced RCA analog I/O. The input is common, but the outputs are separate. Independent digital in and out are provided on digital coax ports that can output SPDIF or AES/EBU signals. If balanced ports are desired, the optional LA-D302 will offer XLR balanced ports for the analog in and independent outs.
The RC-D302 wired remote was included with the DA-302.
| Format | Rotary head digital audio tape deck |
| Tape speed (SP record/playback) | 8.15 mm/sec |
| Tape speed (playback only) | 12.225 mm/sec |
| Tape speed (SP double speed dubbing / LP 4x dubbing) | 16.3 mm/sec |
| Tape speed (LP record/playback) | 4.075 mm/sec |
| Recording time (SP) | 120 minutes (with 120-minute tape) |
| Recording time (LP) | 240 minutes (with 120-minute tape) |
| Fast winding/rewinding time | Approx. 60 seconds (with 120-minute tape) |
| Channels | Stereo 2 channels |
| Quantization | 16-bit linear (SP) / 12-bit non-linear (LP) |
| Error correction method | Doubled Reed Solomon code |
| Sampling rates | 48 kHz (recording/playback) / 44.1 kHz (recording/playback) / 32 kHz (recording/playback) |
| Emphasis | 50 µsec/15 µsec (automatically applied in play mode) |
| Frequency response (48/44.1 kHz) | 20Hz~20 kHz ±0.5 dB |
| Frequency response (32 kHz) | 20Hz~14.5 kHz ±0.8 dB |
| S/N ratio | More than 89 dB |
| Dynamic range | More than 89 dB |
| THD (SP) | Less than 0.007% (1 kHz, full-scale) |
| THD (LP) | Less than 0.07% (1 kHz, full-scale) |
| Channel separation | More than 85 dB (1 kHz) |
| Wow and flutter | Unmeasurable (less than ±0.001%) |
| Analog input connector | RCA pin ×2 |
| Analog input normal level | -10 dBV (0.3V), unbalanced (FS-16 dB) |
| Analog input impedance | 20 kΩ |
| Analog output connector | RCA pin ×4 |
| Analog output normal level | -10 dBV (0.3V), unbalanced (FS-16 dB) |
| Analog output maximum level | +6 dBV (2.0V), unbalanced (10 kΩ load) |
| Analog output impedance | Less than 1 kΩ |
| Cascade output connector | RCA pin ×2 |
| Cascade output normal level | -10 dBV (0.3V), unbalanced (FS-16 dB) |
| Cascade output maximum level | +6 dBV (2.0V), unbalanced (10 kΩ load) |
| Cascade output impedance | Less than 1 kΩ |
| Headphone connector | 6.3 mm phone jack ×1 |
| Headphone maximum output level | 50 mW + 50 mW (32Ω load) |
| Digital input connector | RCA pin ×2 |
| Digital input format | IEC958 TYPE I (AES/EBU) / IEC958 TYPE II (SPDIF), automatic selection |
| Digital input impedance | 75Ω |
| Digital output connector | RCA pin ×2 |
| Digital output format | IEC958 TYPE I (AES/EBU) / IEC958 TYPE II (SPDIF), menu selectable |
| Digital output level | More than 0.5 Vp-p |
| Digital output impedance | 75Ω |
| Cascade digital output connector | RCA pin ×1 |
| Cascade digital output level | More than 0.5 Vp-p |
| Cascade digital output impedance | 75Ω |
| Control input connector | 3.5 mm mini-jack, TTL level |
| Control output connector | 3.5 mm mini-jack, TTL level |
| Remote control input connector | 3.5 mm mini-jack |
| Power supply (USA/Canada) | 120V AC, 60 Hz |
| Power supply (UK/Australia) | 240V AC, 50 Hz |
| Power supply (Europe) | 230V AC, 50 Hz |
| Power consumption | 27W |
| Dimensions | 482(W) × 150.5(H) × 353(D) mm |
| Weight | 7.2 kg |
