Sony TCD-D7

Sony

TCD-D7

Manuals Available
User Manual, Service Manual
Download Manuals
Description

The TCD-D7 was the successor to the very popular TCD-D3 portable DAT Recorder.

Lighter than the TCD-D3 and able to use regular AA batteries (4 required) or external power source.

Original suggested retail price was 699 US Dollars

Features

Easy operation with excellent sound quality of DAT

Superb quality recording and playback with excellent frequency response, remarkably low noise and lack of distortion can be made. High speed fast-forwarding / rewinding and cuing / reviewing for easy tape access.

Long play (LP) mode recording

A maximum of four-hour continuous recording is possible using four size AA (LR6) alkaline batteries which is ideal for recording a meeting or a conference etc.

Adjustable (automatic/manual) recording level

The recording level can be adjusted either manually or automatically to suit every recording situation.

Date function

The date and time are automatically registered at the time of the recording and can be displayed during playback, fastforwarding / rewinding and cuing / reviewing.

LCD display

LCD display window for indicating the current operational mode and the battery power status etc.

Compact design

A compact mechanism and design for portability.

Recording compatibility

Recording can be made from various digital audio equipment such as a CD (compact disc)/Min*Disc player or a BS (broadcasting satellite)/CS (communication satellite) tuner etc.

Technical Specifications
Tape Digital audio tape
Recording time Long-play: 240 minutes (with DT-120)
Recording time Standard: 120 minutes
Sampling Frequency 48kHz, 44.1kHz, 32kHz
Standard Fs 48 kHz 20-22,000 Hz (+ or - 1.0dB)
Standard Fs 44.1 kHz 20-20,000 Hz (+ or - 1.0dB)
Long-play Mode Fs 32 kHz 20-14.500 Hz (+ or - 1.0dB)
Standard More than 87 dB
Long-play Mode More than 87 dB (1 kHz IHF-A, 22kHz LPF, LINE IN)
Standard Less than 0.008% (1 kHz IHF-A, 22kHz LPF, LINE IN)
Long-play Less than 0.09% (1 kHz IHF-A, 22kHz LPF, LINE IN)
Wow And Flutter Below measurable limit (less than + or - 0.001% W.PEAK)
Impedance 4.7 Kohms
Minimum Input Level 0.4mV
Rated Input Level 500 mV
Minimum Input Level 80 mV
Audio Stereo minijack
Impedance 27 ohms
Rated Output LINE OUT 500 mV
Maximum Output PHONES 5 mW + 5 mW
Load Impedance PHONES 32 ohms
Load Impedance LINE OUT more than 10 Kohms
Digital I/O-REMOTE jack (special jack) Digital input/output, remote control operation and timer-activated operation is possible
Power Requirements The car battery cord DCC-E160L(not inc.) for use with 12V car battery of DCC-E260HG (not inc.)I
Power Requirements DC IN 6V jack accepts the Sony AC power adaptor for use on 240v AC, 50 Hz
Power Requirements DC 6V four LR6 (size AA) batteries
Power Consumption 1.2W
Dimensions Approx. 132.6 x 36.7 x 88.2mm (5.25 x 1.5 x 3.5in.)(w/h/d) not incl. projection parts and controls
Mass Approx. 500g (1lb. 1oz.) incl. batteries

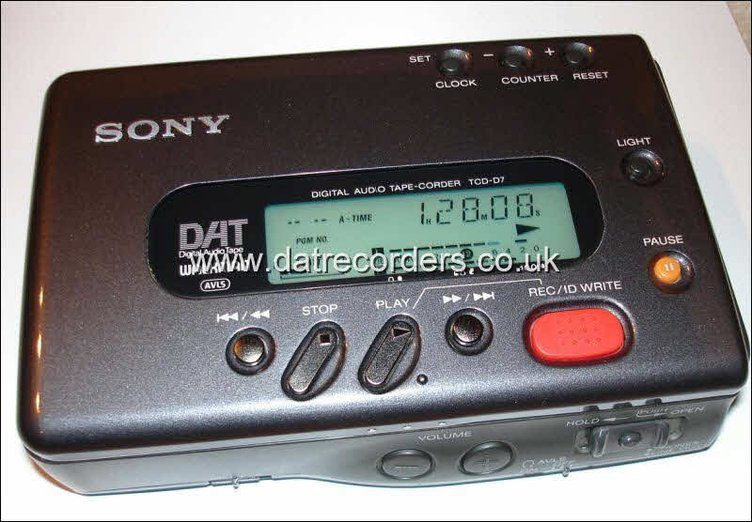

Gallery
