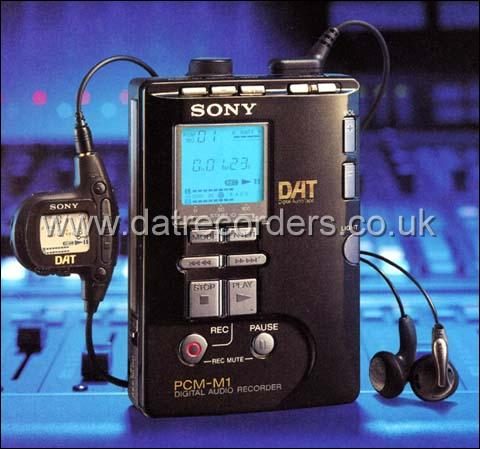

PCM-M1

The Sony PCM-M1 DAT Recorder was introduced in January 1998.

• The PCM-M1 portable Professional DAT recorder combines consumer-friendly features with the added professional requirements for the demanding DAT user.
• The PCM-M1 allows for selectable ID6 (Serial Copy Management System) and features a recording margin indicator, which allows users to monitor peak levels during recording.
• The unit's improved microphone circuitry uses the same microphone amplifier as Sony's SBM-1 Super Bit Mapping adapter. The SBM-1, a common accessory to many Sony professional DAT machines, features a built in 20-bit converter for higher-quality recording and digital I/O capability for both optical and coaxial.
• With a compact mecha-deck that is 20 percent smaller and 25 percent lighter than its consumer cousin, the TCD-D8, the PCM-M1 allows for 3.5 hours of recording time through its supplied Ni-MH batteries. By using alkaline batteries, users can achieve 2.5 hours of recording time.
• The PCM-M1 features three adjustable recording levels (automatic, mic limiter and manual) and two automatic gain system (AGC) modes (music or speech) for higher-quality recording. The automatic volume limiter system, electronically reduces sudden peaks in music and helps to eliminate distortion at extreme volume levels. AGC automatically adjusts recording levels to help prevent distortion.
• The PCM-M1 had a suggested retail price is 1075 US Dollars.

Easy operation with excellent sound quality of DAT

Superb quality recording and playback with excellent frequency response, remarkably low noise and lack of distortion can be made. High speed fast-forwarding / rewinding and cuing / reviewing for easy tape access.

Long play (LP) mode recording

A maximum of four-hour continuous recording is possible using four size AA (LR6) alkaline batteries which is ideal for recording a meeting or a conference etc.

Adjustable (automatic/manual) recording level

The recording level can be adjusted either manually or automatically to suit every recording situation.

Rec mute function that makes a four-second blank automatically.

Date function

The date and time are automatically registered at the time of the recording and can be displayed during playback, fastforwarding / rewinding and cuing / reviewing.

LCD display

LCD display window for indicating the current operational mode and the battery power status etc.

Compact design

A compact mechanism and design for portability.

Recording compatibility

Recording can be made from various digital audio equipment such as a CD (compact disc)/Min*Disc player or a BS (broadcasting satellite)/CS (communication satellite) tuner etc.

Three sampling frequencies (48/44.1/32kHz) that support high quality digital recording.

Key Features:

• Digital recording with better than CD-quality sound
• Backlit LCD display
• Manual, Music and Speech recording level controls
• Date and time stamp function
• 1 bit A/D and D/A converters
• 32, 44.1 and 48 kHz sampling rates
• 44.1kHz analogue recording for CD mastering
• 7 pin digital in/out connector
