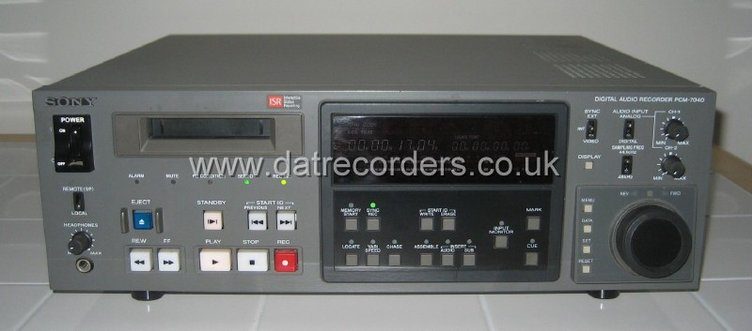

Ideally suited for interchanging audio between recording studios and video post production facilities, Sony's PCM-7040 DAT recorder offers high-quality 2-channel digital recording with SMPTE time code.
This high-end recorder is useful for a wide range of audio recording applications where time code synchronization and external control are required
The PCM-7040 replaces the previous models PCM-7030 and PCM-7050.
The PCM-7040 includes all of the features of the PCM-7030 and PCM-7050 as standard.
Original suggested retail price was 10,200 US Dollars
- 2 channel time code DAT audio recorder with comprehensive external control and synchronization capabilities
- Included as standard; Time Code Reader/Generator, Digital I/O, Memory Start, RS-232C I/F, and Edit Memory
- Compact, lightweight and low power consumption
- Start ID level Sync Function enables the PCM-7040 to write a Start ID automatically each time the audio level rises from period of silence and exceeds a selectable audio threshold
- Internal clock for Time Date allows the automatic time-stamping of recording. This date and time data can be read later from the tape on any PCM-7040
- Eject Control via 37-pin Parallel Remote
- Key Reassignment for ease of use
- Support the Sony ISR (Interactive Status Reporting) System which allows the user to remotely monitor and report the Status of critical performance parameters within the unit (via RS-232C or modem)
- External Synchronization-The PCM-7040 recorder, with digital I/O and a time code reader/generator provided as standard, can be locked to a variety of external reference signals
- General Purpose Interfacing facility 37-pin connector provides an interface to the RM-D7100 remote controller or to a synchronizer for remote control of transport functions.
- Comprehensive Serial Remote Control 9-pin remote connector for convenient control from external equipment
- Subcode Recording
- Search/Locate Function-
- Time Code Locate
- Cueing
- Start ID Search
- Program Number and End ID Locate
- Blank Search
- Input Signal Level Control
- Variable Speed Recording
| Quantization | 16-bit linear |
| Modulation | 8 to 10 modulation |
| Recording time | 124 minutes (with Sony PDP-124) |
| Sampling frequency | 48kHz, 44.1kHz |
| Variable speed range | 12.5% playback |
| Frequency response | 20 Hz to 20 kHz (+-0.5 dB) |
| Power requirements | AC 120V (10% 60 Hz AC 230V +6/-10% 50/60Hz) |
| Power consumption | approx. 38 W at AC 120V approx. 0.3 A at AC 230V |
