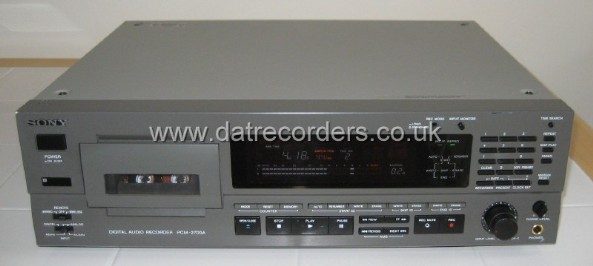

PCM-2700A

The PCM-2700A is the professional version of the DTC-77ES.

Almost identical to it's predecessor the PCM-2700, but has the addition of with the addition of AES/EBU balanced digital I/O (XLR).

The key features of this model are the four head design and also the four direct drive transport motors.

Includes time search and 3 level dimmable display.

Suited for simple program transmission at broadcasting stations and simple recording/playback use at recording studios

(1) Digital Audio Recorder Compatible With DAT Format Standard

Audio signals are converted into 16-bit quantized digital data for recording and playback realizing pure reproduction with virtually no degradation in sound quality. Moreover, the basic tape format is compatible with consumer-use DAT equipment.

(2) Professional-use Digital I/O

Digital I/O terminals conform to the professional AES/EBU format standard (balanced type, XLR) and COAXIAL IEC-958 format (unbalanced type, phono jack). The COAXIAL IN and OUT terminals accept professional format (IEC 958-TYPE I*).The digital input terminals also accept consumer format (IEC 958-TYPE II*) signals for digital recording from consumer-use equipment. Therefore, the digital recording from the consumer-use DAT deck to this unit can be available by connecting to the COAXIAL IN and OUT terminals.However, the digital recording from this unit to the consumer-use DAT deck can not be available.

(3) Wide-range Analog I/O Level Adjustment

Rear panel signal level adjustment function for the balanced type (XLR) analog I/O jacks covers a wide adjustment range from professional-use to consumer-use levels.

(4) 4-Head, 4-DD Mechanism

The PCM-2700A is the first digital audio recorder in its class to employ a four-head system enabling monitoring of the playback signal during recording (RAW function). Moreover, all four tape transport motors offer direct-drive operation for improved tape transport stability.

(5) Compatible With Various Sampling Frequencies (Fs)

Allows recording and playback in both standard play (SP) mode and long play (LP) mode compatible with consumer-use equipment. Analog recording is possible at sampling frequencies of 48 kHz (SP), 44.1 kHz (SP) and 32 kHz (LP), and digital recording is possible at sampling frequencies of 48 kHz (SP), 44.1 kHz (SP) and 32 kHz (SP/LP). Playback is possible at all frequencies and modes.

(6) Remote Control Operation

Wireless remote control is possible using the supplied RM-D2700 remote commander, and wired remote control is possible using the optional RM-D7100 remote controller.

(7) Various Sub codes and Search Functions

In addition to the Start ID, Skip ID and End ID, other sub codes such as the absolute time and program number can be recorded in and read from the tape's subcode area to provide a wide variety of convenient DAT search functions.

(8) Built-in Date Function

A dedicated built-in clock is used to automatically record the date (year/month/day), day of the week, and time (hour/minute/second) in the tape's subcode area, allowing confirmation of the date and time of recording during playback.

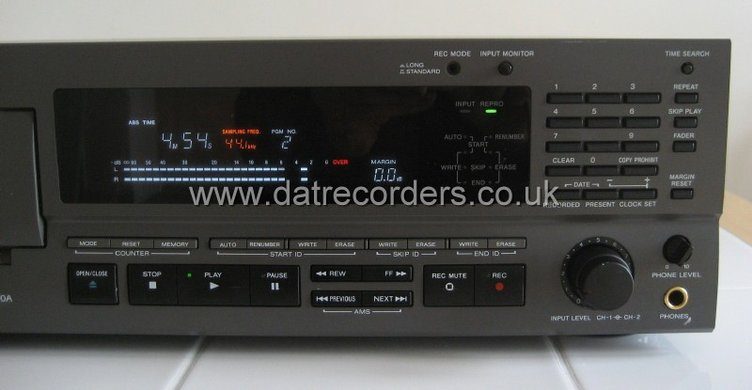

(9) Multi Display Provides Quick Access to Many Types of Information

In addition to displaying the program number and various types of time/counter data, this display is provided with features including a 29-segment peak level meter and a 0.1 dB-step peak margin indicator.

(10) Rack Mounting Compatibility

Use of the supplied adapter allows mounting in a standard 19" rack.

(11)Fader Start Compatibility

"TYPE I" and "TYPE II" stand for the followings:INTERNATIONAL STANDARD IEC958 (Digital audio interface)TYPE I: Channel status application for "Broadcasting studio use"TYPE II: Channel status application for "Consumer use"
