Description
The Sony DTC-M100 was released in 1988.
It was supplied with a remote control and removable wooden side panels.
Features
Very similar to the DTC-500ES and DTC-300ES with whom it shared the same transport mechanism.
Technical Specifications
| Tape | Digital audio tape |
| Recording head | Rotary head |
| Recording time | Standard: 120 minutes |
| Tape speed | Standard: 8.15 mm/s |
| Drum rotation | Standard: 2,000 rpm |
| Error correction | Double-Read Solomon code |
| Track pitch | 13.6 µm (20.4 µm) |
| Sampling frequency | 48 kHz, 44.1 kHz (playback only), 32 kHz |
| Modulation system | 8-10 Modulation |
| Transfer rate | 2.46 Mbit/sec |
| Number of channels | 2 channels, stereo |
| D/A conversion (Quantization) | Standard: 16-bit linear Long-play mode: 12-bit non-linear |
| Frequency response | Standard: 5-22,000 Hz (±0.5 dB) |
| Signal-to-noise ratio | Standard: more than 90 dB |
| Dynamic range | Standard: more than 90 dB |
| Total harmonic distortion | Standard: less than 0.008% (1 kHz) |
| Wow and flutter | Below measurable limit (±0.001% W. PEAK) |
| Dimensions | 390 (W) x 106 (H) x 402 (D) mm |
| Weight | 8.2kg |
Transport Mechanism
| Tape Transport Mechanism Type: | DATM-12 |
| Model Using Similar Transport: | DTC-300ES |
Gallery
Documents
PDF downloads delivered instantly after payment via PayPal. Download links expire 48 hours after purchase.
User Manual
Sony DTC-M100 User Manual
Not yet available
Service Manual

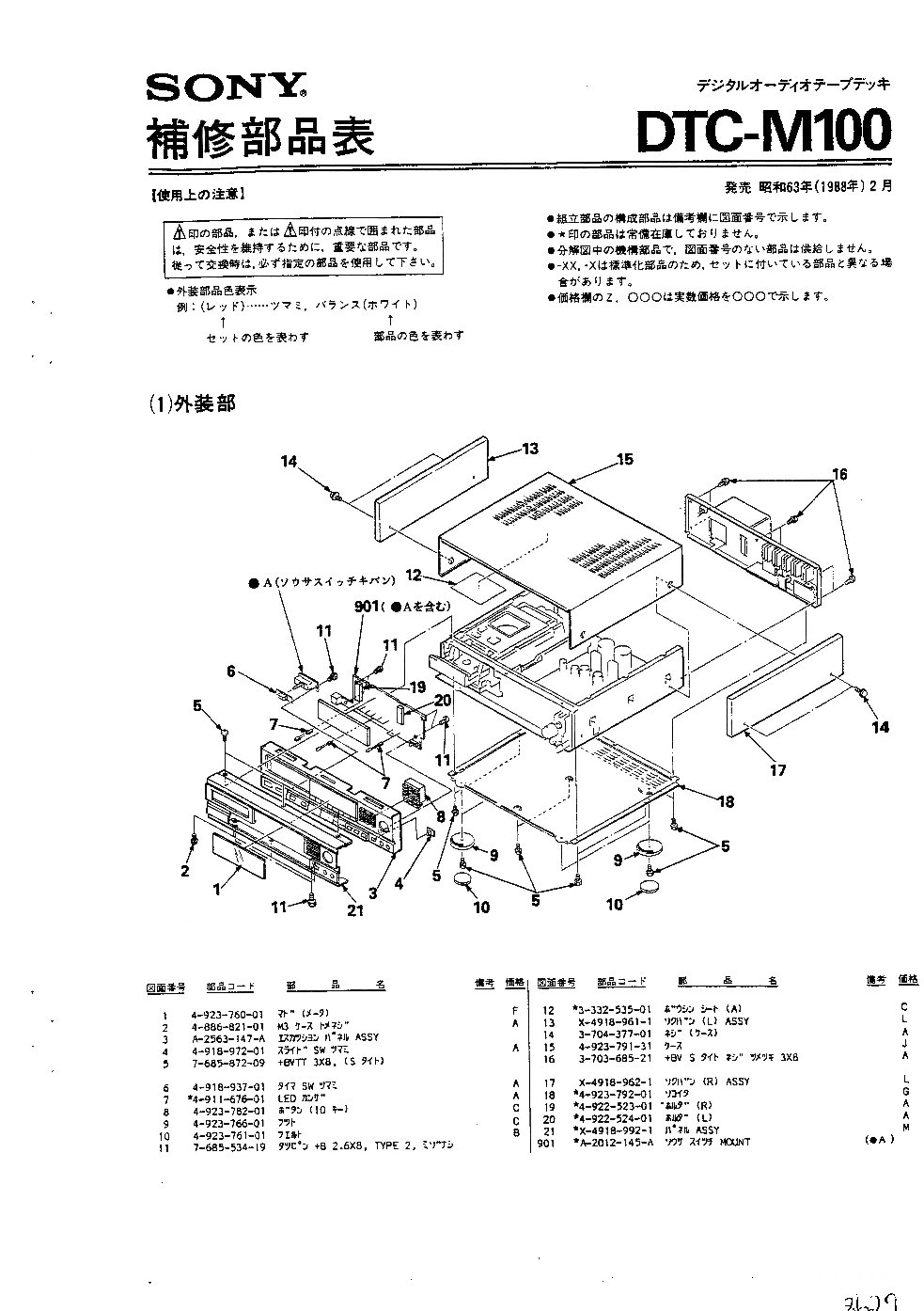

Sony DTC-M100 Service Manual
