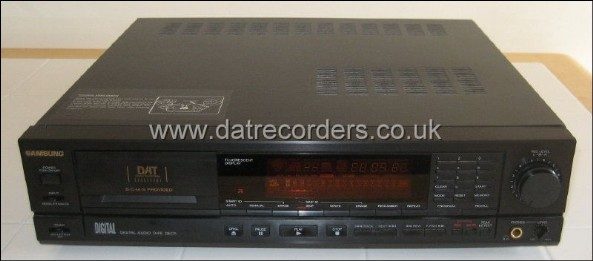

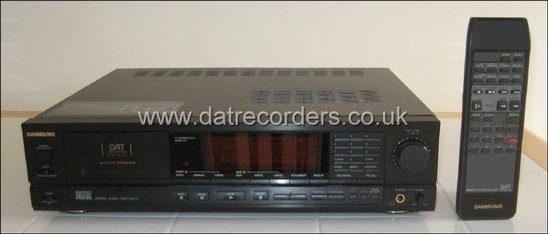

Samsung DT-850 DAT Recorder.
Included both coaxial and optical digital connectors for input and output.
High-Fidelity Audio
Employs a 1-bit A/D converter and a D/A pulse converter to guarantee exceptional sound reproduction and input conversion.
Frequency Response
Ranges from 4Hz to 44,000 Hz.
Dynamic Range & Signal-to-Noise Ratio
Boasts a dynamic range over 96 dB and an SNR exceeding 92 dB for incredibly low distortion.
Sampling Frequencies
Offers three selectable sampling rates:
- 48 kHz — for standard analogue and digital input signals
- 44.1 kHz — specifically tailored for CDs and DAT-recorded tapes
- 32 kHz — for analogue longplay input signals
Longplay Mode
Allows for extended recording time up to 4 hours on a single tape by reducing the tape speed.
Subcode Capabilities
Can record and manipulate various subcode types including start codes, program numbers, jump codes, and absolute time codes.
Connectivity

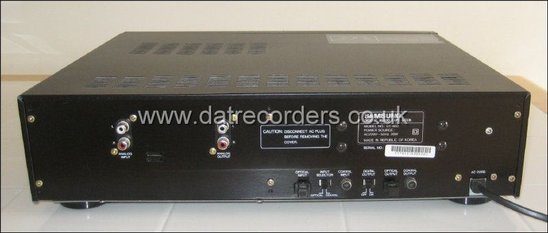

Fully equipped with multiple inputs and outputs, including Line In/Out (RCA), Digital In/Out (coaxial and optical), and a dedicated headphone jack.
Physical Profile
Encased in a black chassis, weighing 8.6 kg and measuring 420 × 95 × 355 mm.
| Tape | Digital Audio Tape |
| Head | Rotary head |
| Recording time | 120 minutes max. (according to tape, time can vary) |
| Tape speed | 8.15 mm/s |
| Drum rotation | 2,000 rpm |
| Error correction | Double encoded Reed Solomon code |
| Track pitch | 13.6 µm |
| Sampling frequency | 48 kHz, 44.1 kHz, 32 kHz |
| Modulation | 8-10 modulation |
| Transmission speed | 2.46 Mbit/sec |
| Number of channels | 2 |
| Quantization | 16-bit linear |
| Frequency response | 2Hz~20 kHz (±0.5 dB) |
| S/N ratio | Above 100 dB |
| Dynamic range | Above 96 dB |
| Total harmonic distortion | Below 0.005% at 1 kHz |
| Wow and flutter | Less than measurable limit (±0.001%) |
| Analog input connector | RCA jack |
| Analog input impedance | 47 kΩ |
| Analog input rated level | 500 mV |
| Digital optical input connector | Optical jack |
| Digital coaxial input connector | RCA jack |
| Digital coaxial input impedance | 75Ω |
| Digital coaxial input rated level | 0.5 Vp-p |
| Analog output connector | RCA jack |
| Analog output impedance | 690Ω |
| Analog output rated level | 2 Vrms |
| Analog output load impedance | 10 kΩ |
| Headphone connector | Stereo jack |
| Headphone output impedance | 100Ω |
| Headphone output level | 0~35 mV |
| Headphone load impedance | 32Ω |
| Digital optical output connector | Optical jack |
| Digital coaxial output connector | RCA jack |
| Digital coaxial output impedance | 75Ω |
| Digital coaxial output rated level | 0.5 Vp-p |
| Digital coaxial output load impedance | 75Ω |
| Power supply | 220V, 50 Hz |
| Power consumption | 26W |
| Dimensions | 420(W) × 96(H) × 355(D) mm |
| Weight | 8.6 kg |
