Description
The Panasonic SV-3500 is a heavy duty professional DAT recorder dsigned for use in the recording studios.
Features the 4 DAC 18 bit system as found in the Technics' high end CD players.

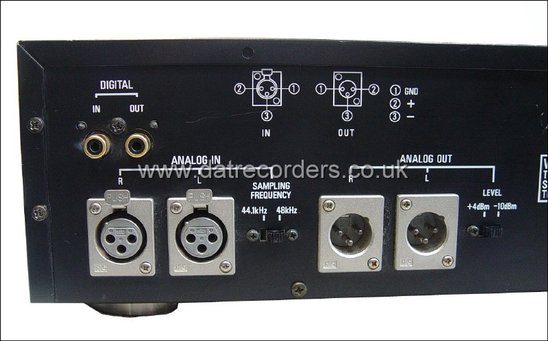

XLR analogue connectors and coaxial digital connectors.
Identical to the Technics SV-360.
Technical Specifications
| Tape recording system | Rotating head type DAT |
| Sampling frequencies (analog/digital input recording) | 48 kHz |
| Sampling frequencies (analog input recording) | 44.1 kHz |
| Sampling frequencies (digital input recording) | 32 kHz |
| Sampling frequencies (playback) | 48 kHz, 44.1 kHz, 32 kHz (selected automatically) |
| Quantization | 16-bit linear |
| Number of channels | 2 (stereo) |
| Frequency response (48 kHz) | 10Hz~22,000 Hz (±0.5 dB) |
| Frequency response (32 kHz) | 10Hz~15,000 Hz (±0.5 dB) |
| Dynamic range | 90 dB or more |
| Dynamic range (playback) | 96 dB or more |
| S/N ratio | 93 dB or more |
| Total harmonic distortion | 0.05% or less (1 kHz, input/output level +4 dBm) |
| Wow and flutter | Below limit of measurement |
| Analog input level | +4 dBs (-18 dB rec level) |
| Analog input impedance | 10 kΩ |
| Analog output level | +4 dBm / -10 dBm (-18 dB) |
| Analog output impedance | 20Ω / 135Ω |
| Headphone output | Max. 30 mW / 32Ω (matching impedance 8~600Ω) |
| Digital input | Coaxial 75Ω |
| Digital output | Coaxial 75Ω |
| Head type | Amorphous ferrite composite type |
| Cylinder diameter | 30 mm |
| Cylinder rotation speed | 2000 rpm (recording and playback) |
| Tape speed | 8.15 mm/sec / 12.225 mm/sec (selected automatically) |
| Search speed | Max. 200 times normal speed |
| Fast forward winding time | Approx. 40 sec |
| Power supply | 110V/127V/220V/240V AC, 50/60 Hz |
| Power consumption | 40W |
| Dimensions | 430(W) × 115(H) × 340(D) mm |
| Weight | 7.5 kg |

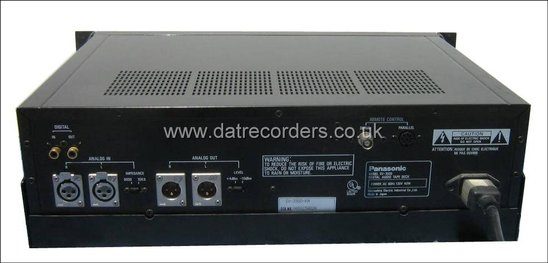

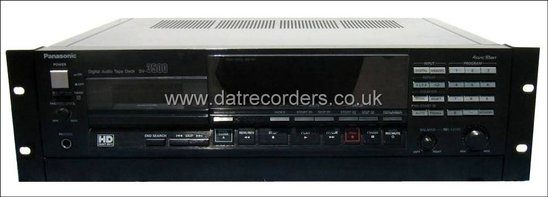

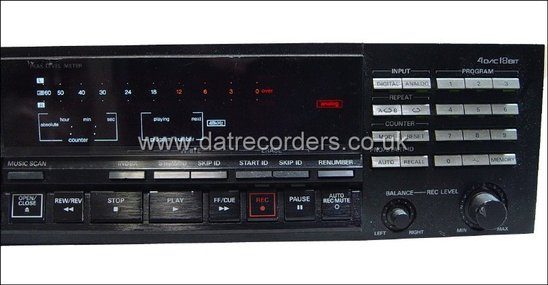

Gallery
Documents
PDF downloads delivered instantly after payment via PayPal. Download links expire 48 hours after purchase.
User Manual
Panasonic SV-3500 User Manual
Not yet available
Service Manual

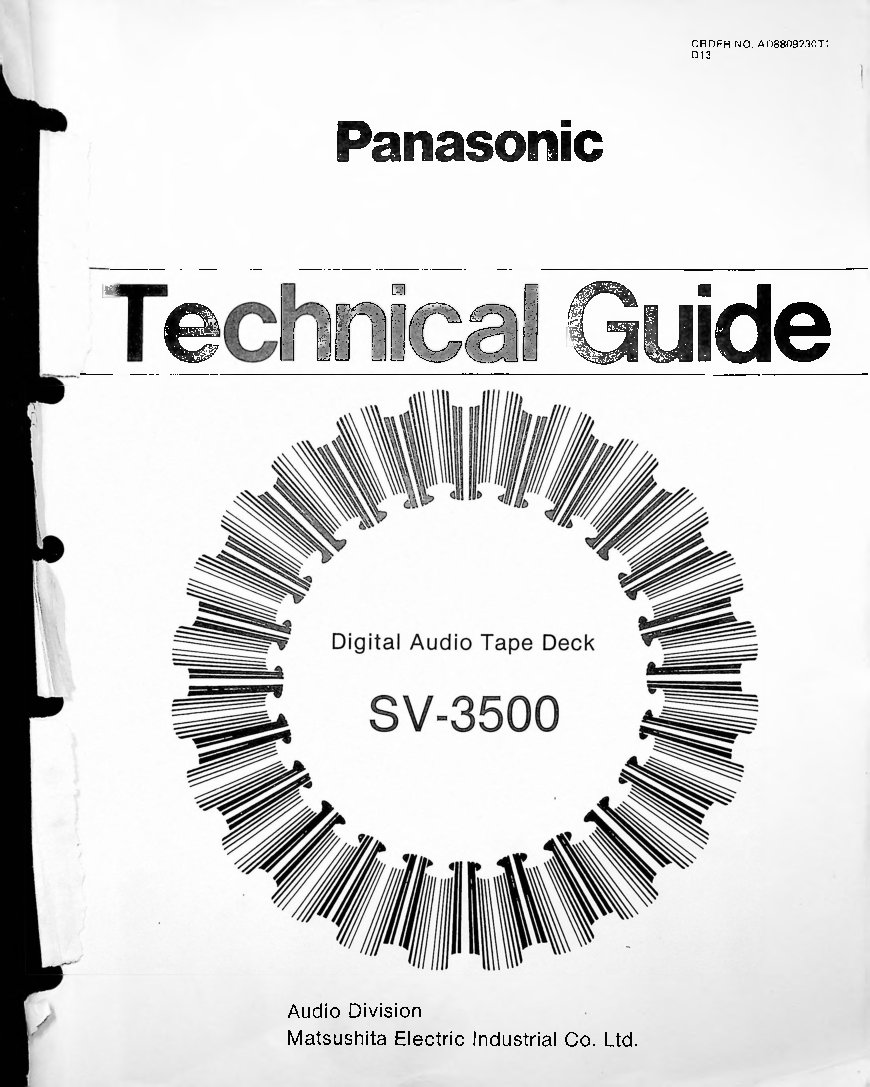

Panasonic SV-3500 Service Manual
