Description

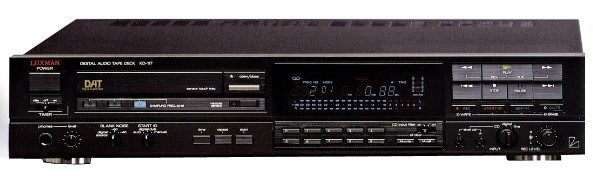

The KD-117 was the only DAT recorder made by Luxman in 1987.
It was based around the Sony DTC-1000ES transport mechanism.
Technical Specifications
| Dimensions | 438(W) × 86(H) × 345(D) mm |
| Weight | 9 kg |
| Sampling frequencies | 48 kHz (record/playback) / 32 kHz (record/playback) / 44.1 kHz (playback only) |
| Tape speed | 8.15 mm/s (standard) |
| D/A converter | 16-bit, 4x oversampling |
| A/D converter | Integrating type |
| Signal-to-noise ratio | 92 dB (record/playback, JIS-A) |
| Dynamic range | 90 dB (record/playback) / 96 dB (playback) |
| Frequency response | 5Hz~22 kHz ±0.5 dB |
| Total harmonic distortion | 0.005% |
| Analog inputs | RCA ×2 (Line In) |
| Analog outputs | RCA ×2 (Line Out) |
| Digital coaxial input | RCA ×1 |
| Digital optical input | Toslink ×1 |
| Digital coaxial output | RCA ×1 |
| Digital optical output | Toslink ×1 |
| Headphone output | 1/4" stereo jack ×1 with dedicated level control |
| Control interface | Wired remote input ×1 (Luxman protocol) |

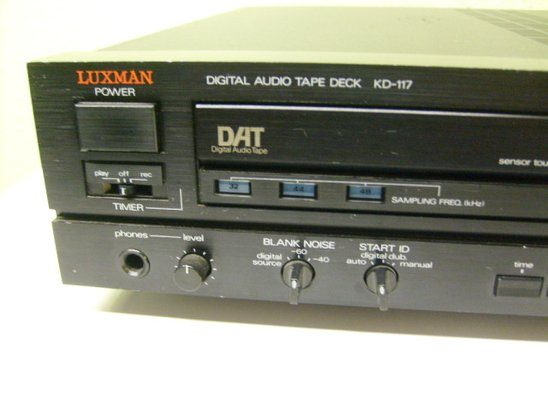

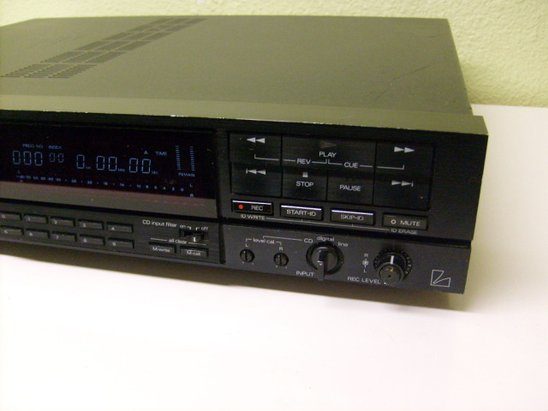

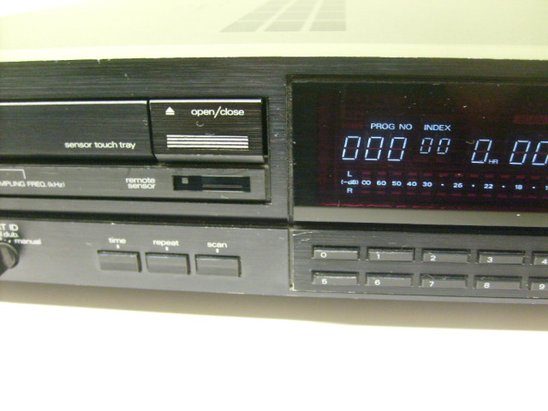

Gallery
Documents
PDF downloads delivered instantly after payment via PayPal. Download links expire 48 hours after purchase.
User Manual

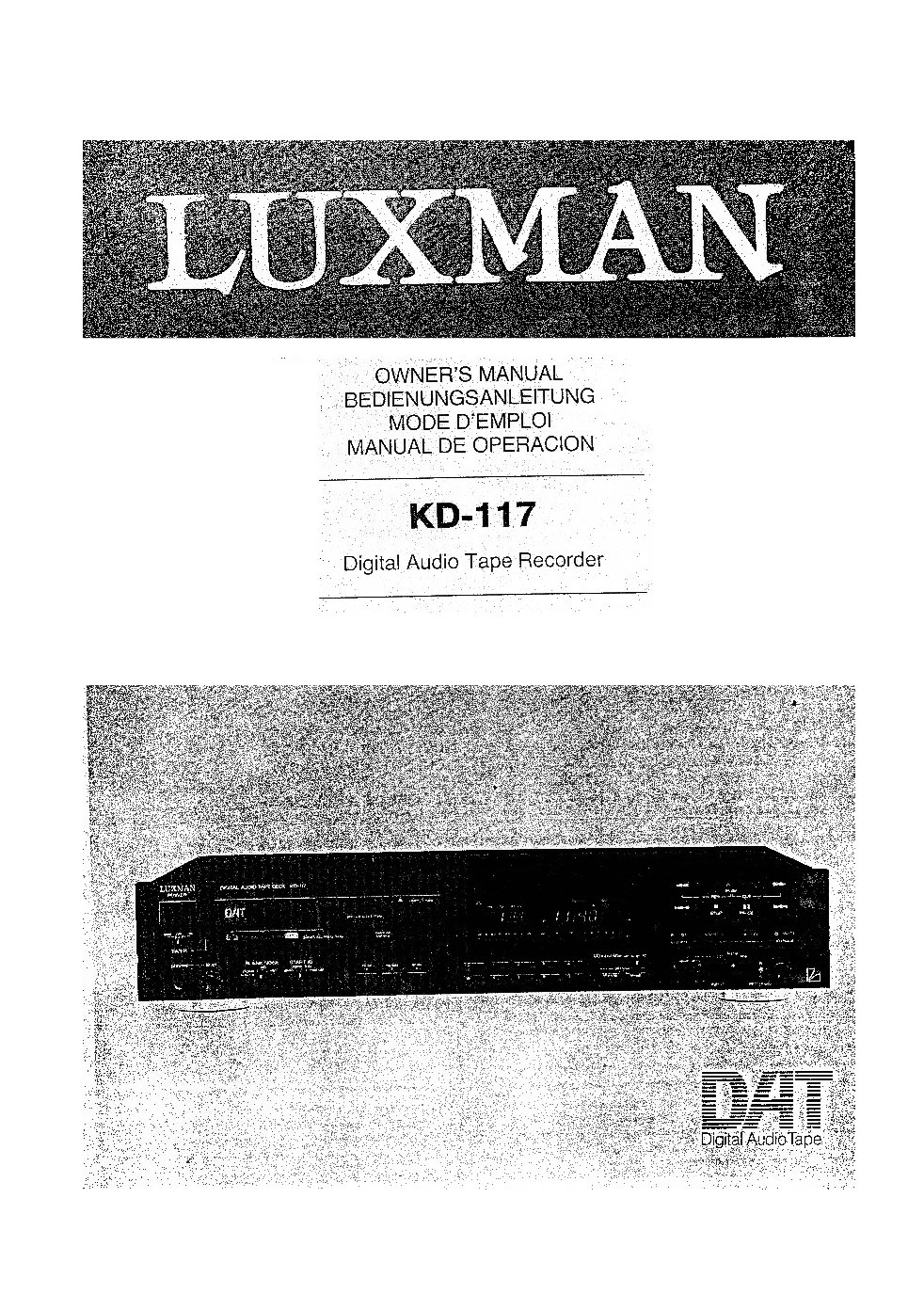

Luxman KD-117 User Manual
£4.99
/ PDF download
By purchasing you agree to our terms and conditions.
Service Manual

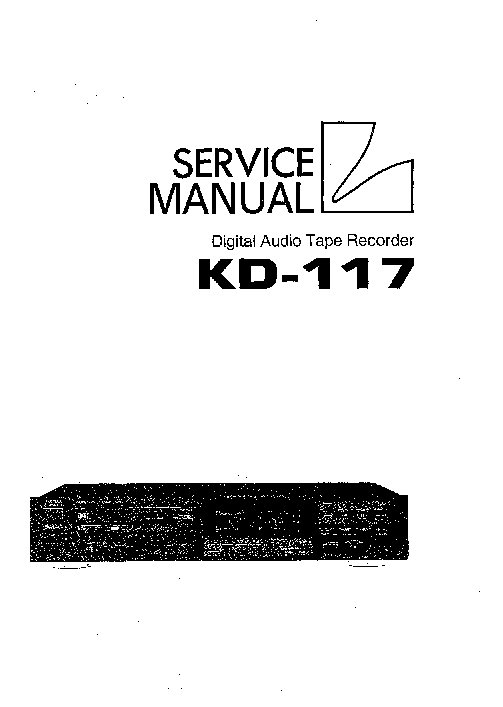

Luxman KD-117 Service Manual
