Description

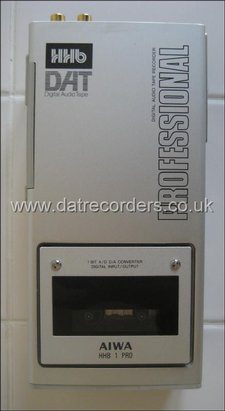

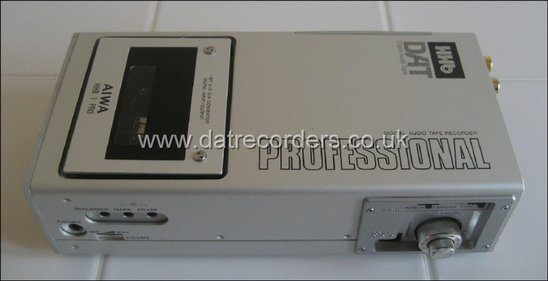

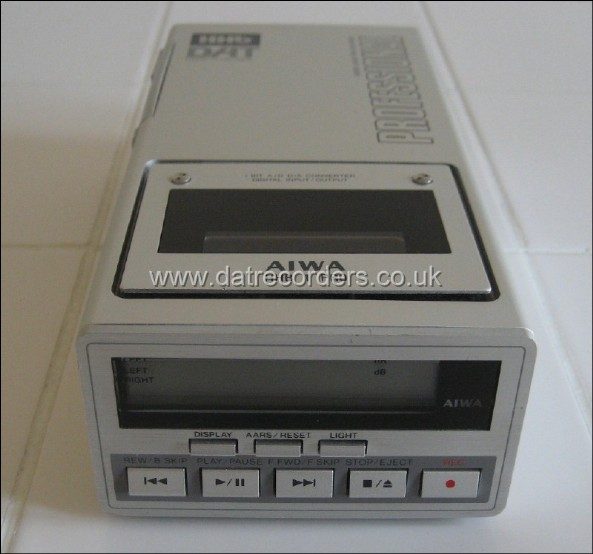

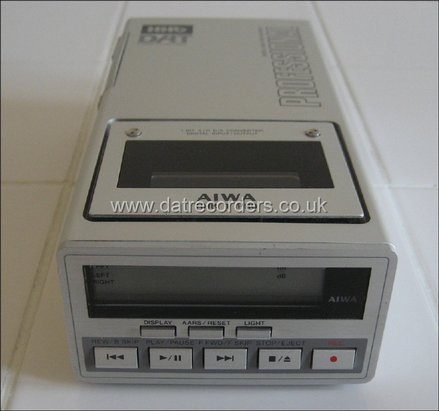

The HHB-1 is a professional portable DAT recorder made for HHB by AIWA.

It is larger than the Sony Datman and features an all metal case.

It accepts three types of power, a rechargeable PB-20 battery, 10 AA cells or a power adaptor.

The power source can be changed whilst recording without interruption or glitch.

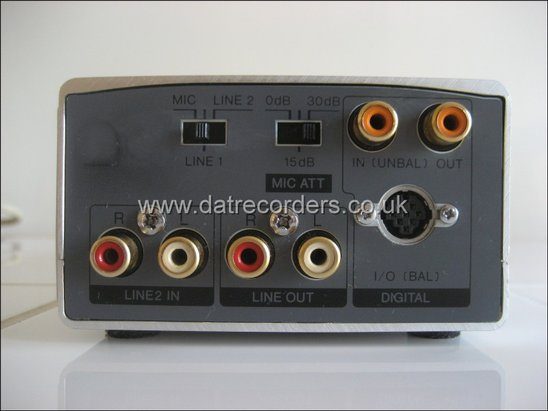

It has XLR mic in, RCA line/mic in, RCA line out, and a wired remote.

Original price of $1400 (US Dollars)

Features

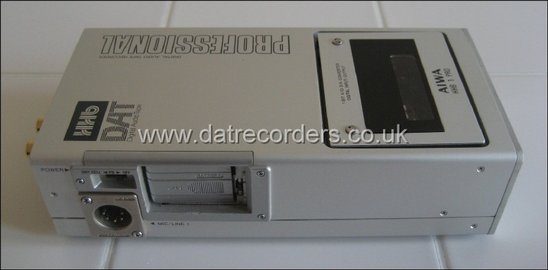

Reliable connection obtained with the Cannon connector

The Cannon connector (for XLR-5-1 1 C) analog line input enhances reliable connections.

Continuous recording using batteries

Ten LR6 alkaline batteries allow continuous recording of up to three hours.

Digital audio recording conforming to the AES/EBU* standards for professional use

Three choices in power sources allow you to use your HHB 1 PRO anywhere.

You can choose a power source either a rechargeable battery, alkaline batteries or AC adaptor.

A/D (analog/digital) converter unit incorporated

Both digital recording/playback and analog recording/playback are possible with this unit.

High speed search by sub-code detection

With this unit, the following sub-codes can be registered on a tape: A.TIME (Absolute time), START ID (Start identification), PROGRAM NO. (Program number). By detecting the registered sub-code, you can search for the beginning of a selection at high speed.

AES/EBU stands for Audio Engineering Society/European Broadcasting Union.

Technical Specifications

Recording system	Rotary head, Digital audio tape
Tape speed	8.15 mm/sec (12.225 mm/sec)
Sampling frequencies (record)	48 kHz, 44.1 kHz, 32 kHz
Sampling frequencies (playback)	48 kHz, 44.1 kHz, 32 kHz
Digitization	16-bit linear
Number of channels	2 channels (stereo)
Frequency response	20Hz~22,000 Hz
Signal-to-noise ratio	85 dB (recording)
Dynamic range	85 dB
Total harmonic distortion	0.01%
Wow & flutter	Under measurable limit
Digital input connector	Phono jack ×1
Digital input level	0.5 Vp-p, input impedance 75Ω
Digital output connector	Phono jack ×1
Digital output level	0.5 Vp-p, output impedance 75Ω
Digital I/O multiconnector	Multiconnector ×1, 10 Vp-p max. input impedance 250Ω, 3 Vp-p output impedance 110Ω
Analog input LINE2	Phono jack ×2, 70 mV, input impedance 47 kΩ (reference recording level: -12 dB)
Analog input MIC/LINE1	Cannon connector XLR-5-32 ×1, 0.3 mV input impedance 10 kΩ (MIC) / 50 mV input impedance 47 kΩ (LINE1)
Analog output connector	Phono jack ×2 (LINE OUT)
Analog output maximum level	1.2V (fs: 48 kHz), load impedance more than 10 kΩ
Headphone connector	Stereo mini jack ×1
Headphone maximum output level	15 mW + 15 mW, EIAJ/32Ω
Power supply	6V DC (rechargeable battery PB-20) / 110-120/220-240V AC 50/60 Hz via AC adaptor (7.4V DC) / 7.5V DC (10 LR6 alkaline batteries)
Battery life (PB-20)	Approx. 40 minutes (after 2 hours charging, EIAJ playback/recording)
Battery life (LR6 alkaline)	Approx. 3 hours (EIAJ playback/recording)
Dimensions	100(W) × 57.5(H) × 210(D) mm
Weight	1040g (with rechargeable battery) / 1340g (with rechargeable battery and 10 alkaline batteries)

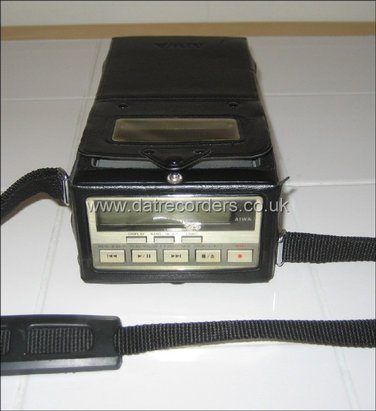

Accessories	Rechargeable battery PB-20 (1), AC adaptor AC-746 (1), Adaptor cord Cannon 5-pin to 3-pin ×2 25cm (1), Digital signal connecting cord 1.5m (1), Carrying case (1), Wired remote controller RC-A1Y (1), Standard phone plug adaptor (1)
