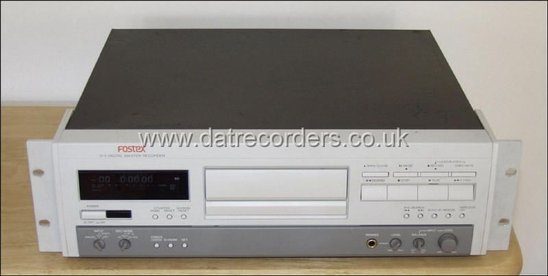

Name: Fostex D-5
Brand: Fostex
Price: 4.99 GBP
Availability: InStock

Description

The Fostex D-5 was introduced in 1995 as a budget stereo DAT digital recorder.

It is in a 3U rack mountable form and is SCMS free.

Features

Balanced I/O (switchable between +4 and -10 dBu)
AES/EBU & S/P-DIF optical I/O
Selectable frequencies
2 quantisation modes
Highly reliable "Sendust" head
32kHz, 44.1kHz, 48kHz sample frequencies
Up to 4 hours continuous recording at 32kHz (long play mode)
PCM error check function
Recognises CD-Q code during digital signal transfer from CD ensuring accurate P-No.
Table of Contents (TOC) facility
300x wind speed (less than 60 seconds for a 120 minute tape)
Short play & long play
Extensive memory functions
Selectable Recording Times - 120 minutes in SP mode, and 240 minutes in LP mode.
It comes equipped with fully balanced inputs & outputs, AES/EBU & S/P DIF optical digital connectors, as well as a General Purpose Interface (GPI) useful for remote or fader start, S-ID search & Stop.
High-Quality A/D & D/A conversion comes as standard with 1-bit wide-range linear A/D converter and high-speed pulse-flow plus 1-bit D/A converter for excellent sound quality and minimal conversion errors.

Technical Specifications

Type	Rotating head digital audio tape recorder
Tape speed	SP: 8.15 mm/s / LP: 4.075 mm/s / Playback only: 12.225 mm/s (1.5 TP)
Recording time	SP: Max. 120 minutes (D-120 tape) / LP: Max. 240 minutes (D-120 tape)
Number of channels	2 channel stereo
Quantization bit number	16 bit linear (SP) / 12 bit non-linear (LP)
Sampling frequency	48 kHz / 44.1 kHz / 32 kHz
Error correcting method	Double encoded Reed Solomon code
Modulation type	8-10 conversion
Emphasis	Analog recording: Fixed at OFF / Playback: Automatic switching
Head	High output sendust head
Standard record level	-12 dB
Record/playback frequency response	SP: 20Hz~20kHz +/-1dB / LP: 20Hz~14.5kHz +/-1dB
S/N ratio	Higher than 90 dB
Dynamic range	Higher than 90 dB
Total harmonic distortion	Less than 0.05% (1 kHz, standard recording level: +4 dBu)
Wow & flutter	Less than measurement limit (±0.001% WTD PEAK)
Analog audio input connector	XLR-3-31 (Pin 1: GND, Pin 2: HOT, Pin 3: COLD)
Analog audio input level	Switchable to +4 dBu/-10 dBV
Analog audio input impedance	10 kΩ
Analog audio output connector	XLR-3-32 (Pin 1: GND, Pin 2: HOT, Pin 3: COLD)
Analog audio output level	Switchable to +4 dBu/-10 dBV
Analog audio output load impedance	Higher than 600Ω
Headphone connector	Stereo standard phone jack ø6mm
Headphone maximum output level	Higher than 40 mW (at 32Ω)
Headphone output load impedance	Higher than 8Ω
AES/EBU digital input connector	XLR-3-31 (Pin 1: GND, Pin 2: HOT, Pin 3: COLD)
AES/EBU digital input format	Comply to AES/EBU specs
S/PDIF digital input connector	Optical
S/PDIF digital input format	Comply to IEC Consumer
AES/EBU digital output connector	XLR-3-32 (Pin 1: GND, Pin 2: HOT, Pin 3: COLD)
AES/EBU digital output format	Comply to AES/EBU specs
S/PDIF digital output connector	Optical
S/PDIF digital output format	Comply to IEC Consumer
GPI input connector	DIN 5 PIN (Pin 1: GND, Pin 2: STOP, Pin 3: PLAY, Pin 4: S-ID Search >>, Pin 5: S-ID Search <<) — PNP transistor input, Low Active (4.7kΩ/5V Pull Up)
Power source/consumption	120VAC 60Hz, 28W / 230V~ 50/60Hz, 28W
Dimensions	482(W) × 134(H) × 383.5(D) mm
Weight	Approx. 6.8 kg
Accessories	Wireless remote control unit (Model 8314), Batteries for remote control (UM-4; IEC-R03), Owner's Manual
