Name: Fostex D-30
Brand: Fostex
Price: 4.99 GBP
Availability: InStock

Description

Flagship of the Professional Timecode DAT range, the D-30 is the fully fledged post-production tool.

With all the features expected such as RS422, full chase lock, four-head confidence monitoring, jog/shuttle control & 8Mbit x 2 of RAM, it is ideally suited to the edit suite.

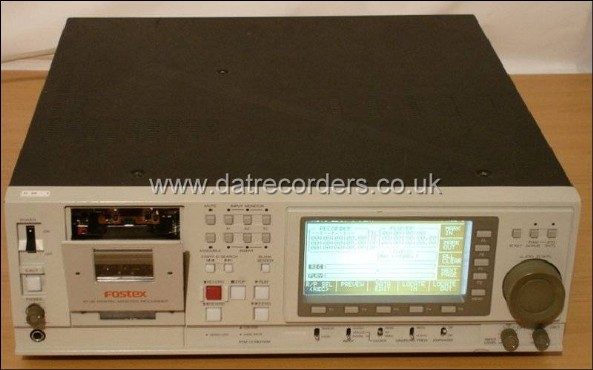

It is designed around a large, easy to read LCD display, similar in style to a VTR, giving instant access to the many functions as well as offering clear and full data display.

It includes a 37-pin for RMC-2 support.

The D-30's two RS422 allow it to seamlessly integrate into a video post environment.

Port A allows the D-30 to be controlled from external 9-pin devices whilst port B is configurable for send or receive RS422.

Original suggested retail price was 10,995 US Dollars

Features

4-Head Drum - With off-tape Confidence Monitoring
4-motor Direct-drive Transport - Includes separate reel motors for unparalleled performance
16MB RAM Buffer Built-in
Dual RS-422 Data Com Ports - Includes an additional port for machine-to-machine editing.
On-board Full-function Timecode Generator/Reader
Separate Audio channels and +- 12% Vari-speed Control - Via front panel controls for easy access or via RS-422 port
Machine-to-machine Editing - Two D-30s can be interfaced via a 9-pin connector
18 bit A/D and D/A Conversion
Comprehensive High-contrast Display - With intuitive soft-key functions for clear operation
Jog/Shuttle Wheel
Designed For Easy Maintenance - Clean heads without removing from rack

Technical Specifications

Recording format	IEC DIS DAT Standard, Part 5
Recording tape	Digital Audio Tape
Number of channels	Audio ×2, Time code ×1
Recording time	120 minutes (with 120 minute tape)
Head composition	Cylinder 4 head, ø30mm, 2000 rpm
Error correction	Double Encoded Reed-Solomon code
Track pitch	13.6 µm
Sampling frequency	48 kHz, 44.1 kHz
Quantization	16 bit linear
Modulation type	Eight to Ten modulation
Transmission rate	2.4 Mbit/sec
Emphasis	50 µsec/15 µsec
Copy guard	Not provided
Power supply	100V AC 50/60Hz / 120V AC 60Hz / 230V AC 50/60Hz / 240V AC 50Hz
Power consumption	50W
Dimensions	482(W) × 150(H) × 480(D) mm
Weight	Approx. 14 kg
Motor construction	4DD Motors
Tape speed	8.15 mm/sec / 12.225 mm/sec (automatically selected)
Fast wind time	Approx. 80 seconds (with 120 minute tape)
Search speed/fast wind speed	Max. 100 times from normal speed
Loading system	Top loading type (internal tape is visible from outside)
Search speed	1/2, 1, 2, 3, 5, 9, 16, 100 times
Vari-speed control	-12.5%~+12.5% (Max. +5% at record mode)
RAM	8 Mbit, 5 sec. ×2 (48 kHz max.)
Source RAM (option)	8 Mbit, 5 sec. ×2 (48 kHz max.)
RAM search speed	0~1 times
Sync signal	Composite, Frame Pulse, Field Pulse, Word Sync
Sync frequency	24, 25, 29.97, 30, 48, 50, 59.94, 60 Hz (±100ppm), Word Sync ±12.5%
R/P frequency response	20Hz~20kHz ±0.5dB
S/N ratio	More than 90 dB (Emphasis OFF)
Dynamic range	More than 90 dB (Emphasis OFF)
T.H.D.	Less than 0.05% (1 kHz, +4 dBu)
Channel separation	More than 80 dB (1 kHz)
Wow & flutter	Less than 0.002% WTD/peak
Phase shift between channels	Less than 20 degrees (at 20 kHz)
Reference record level	-20 dB/-18 dB/-12 dB/-10 dB (selectable)
Meter display	240 × 128 dots LCD display with CCFL backlight
Cross fade time	0ms~300ms (default: 10ms)

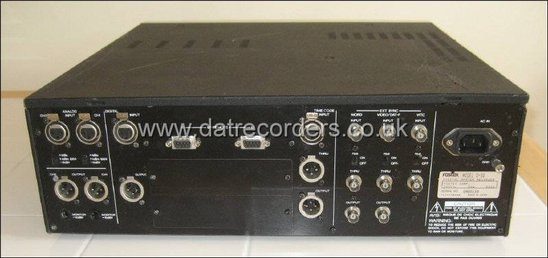

Analog audio input connector	XLR-3-31 type
Analog audio input ref. level (balanced, dBu)	+4 dBu/10 kΩ
Analog audio input ref. level (balanced, dBm)	+4 dBm/600 kΩ
Analog audio input ref. level (unbalanced)	-10 dBV/10 kΩ (unbalanced between HOT and GND)
Analog audio output connector	XLR-3-32 type
Analog audio output ref. level	+4 dBu/600Ω (balanced)
Monitor output connector	ø6 standard phone jack
Monitor output ref. level	-10 dBV/10 kΩ (unbalanced)
Headphone output connector	ø6 stereo phone jack
Headphone maximum output level	100 mW (at 32Ω)
Headphone output load impedance	8Ω or more
Digital input connector	XLR-3-31 type
Digital input format	Complies to AES/EBU standard
Digital output connector	XLR-3-32 type
Digital output format	Complies to AES/EBU standard
Digital output C-bit	AES/EBU & IEC Consumer (switchable)
Time code input connector	XLR-3-31 type
Time code input format	Comply to AES/EBU specifications
Time code input reference level	2 Vp-p
Time code input minimum level	0.25 Vp-p
Time code input impedance	20 kΩ or higher
Time code reader speed	1/30~100 times from play speed (Forward/Reverse)
Time code output connector	XLR-3-32 type
Time code output format	Comply to AES/EBU specifications
Time code output reference level	2 Vp-p
Time code output impedance	50Ω or higher
Time code thru connector	XLR-3-32 type
Time code thru reference level	Direct output of time code input
VITC input connector	BNC type
VITC input reference level	1 Vp-p
VITC input impedance	75Ω ON/OFF (switchable)
VITC thru connector	BNC type
VITC thru reference level	Direct output of VITC input
Word input connector	BNC type
Word input reference level	TTL level
Word input impedance	75Ω ON/OFF (switchable)
Word thru connector	BNC type
Word thru reference level	Direct output of Word input
Word output connector	BNC type
Word output reference level	TTL level
Word output load impedance	75Ω
Video input connector	BNC type
Video input reference level	TTL level
Video input impedance	75Ω ON/OFF (switchable)
Video thru connector	BNC type
Video thru reference level	Direct output of Video input
DAT frame output connector	BNC type
DAT frame output reference level	TTL level plus output
DAT frame output load impedance	75Ω
RS-422 connector	D-SUB 9 pin (×2)
RS-422 protocol	Complies to Sony Audio Protocol
RS-422 device mode	Controlling Device mode / Controlled Device mode (switchable)
