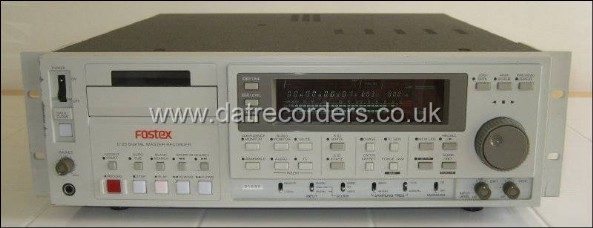

The Fostex D-25 is a fully professional four-head digital master recorder, equipped with 16Mbit of RAM, RS422 control, in-built SMPTE/EBU timecode generator/reader (all formats) & a chase lock synchroniser with offset.
Designed for post-production & editing, the D-25 is equipped with 16Mbit of RAM allowing pin-point cueing & instant start & performs several other functions over RS422 such as pitch control & independent L-R record select. It also resolves to most external references such as Word clock, Video Sync & DAT frame + WORDFeatures
* 16Mbit RAM for pin-point cueing, instant start & RAM scrub * RS422 & 37 pin parallel remote * Jog/Shuttle control * Internal T/C Generator & High Speed reader * Switchable 48, 44.1 kHz sample rates * Record Mute & Blank search * Large, easy to read Fluorescent LED display * Variable crossfade time 2.4Mbit/sec transfer rate 1/2, 1, 2, 3, 5, 9, 16, 100 x normal speed search * -/+12.5% pitch control * 0 - 300msec crossfade * 37-pin support for RMC-2
Original suggested retail price was 8,000 US Dollars
- 4 head design
- Confidence monitor (Off the tape monitoring)
- Punch In/Punch out recording.
- Digital Copy of All Data
- RS-422A Remote Control
- DAT Frame Synchronization
- D-20B as a master machine when inputting a digital signal
- Chase Synchronizer Function
- Time Code Generator Function
- 44.1 kHz / 48 kHz sampling frequency.
- Time-Code & Vari-speed control functions
- Large illuminated transport control buttons
| Recording format | IEC DIS DAT Standard Part 5 |
| Recording tape | Digital Audio Tape |
| Number of channels | Audio ×2, Timecode ×1 |
| Recording time | 120 minutes (with 120 min. tape) |
| Head configuration | Cylinder 4-head, ø30mm, 2000 rpm |
| Error correction | Double Reed-Solomon code |
| Track pitch | 13.6 µm |
| Sampling frequency | 48 kHz, 44.1 kHz, 44.056 kHz |
| Quantization | 16 bit Linear |
| Modulation type | Eight to Ten modulation |
| Transmission rate | 2.4 Mbit/sec |
| Emphasis | 50 µsec/15 µsec |
| Copy guard | Not provided |
| Power requirements | 100VAC 50/60 Hz / 120VAC 60 Hz / 230V~50/60 Hz |
| Power consumption | 50W |
| Memory backup | By battery (approx. 2 months) |
| Dimensions | 482(W) × 150(H) × 480(D) mm |
| Weight | 14 kg |
| Motor construction | 2DD Motors |
| Tape loading method | Front loading type (internal tape is visible from outside) |
| Tape speed | 8.15 mm/sec / 12.225 mm/sec (automatically selected) |
| Fast wind time | Approx. 80 sec. (with 120 min. tape) |
| Search speed/fast wind speed | Avg. 100 times from normal speed |
| Search speed vari-speed control | 1/2, 1, 2, 3, 5, 9, 16, 100 times / -12.5%~12.5% (MAX. +5% at record mode) |
| RAM | 8 Mbit, 10 sec. (48 kHz MAX.) |
| RAM search speed | 0~1 times |
| Cross fade time | 0~300 msec (default 10 msec) |
| Sync signal | Composite, Frame Pulse, Field Pulse, Word Sync |
| Sync frequency | 24, 25, 29.97, 30, 48, 50, 59.94, 60 / Word Sync ±12.5% |
| R/P frequency response | 20Hz~20kHz ±0.5dB |
| S/N ratio | More than 90 dB |
| Dynamic range | More than 90 dB |
| T.H.D. | Less than 0.05% (at 1 kHz, +4 dBu) |
| Channel separation | More than 80 dB (1 kHz) |
| Reference record level | -20 dB/-18 dB/-12 dB/-10 dB (selectable) |
| Wow & flutter | Less than 0.001% WTD/peak |
| Phase shift between channels | Less than 20 degrees (at 20 kHz) |
| Meter display | FL 28 segments (level), 7 seg. × 14 lines |
| Analog audio input connector | XLR-3-31 type |
| Analog audio input ref. level (balanced) | +4 dBu/10 kΩ |
| Analog audio input ref. level (balanced, dBm) | +4 dBm/600Ω |
| Analog audio input ref. level (unbalanced) | -10 dBV/10 kΩ (unbalanced between HOT and GND) |
| Analog audio output connector | XLR-3-32 type |
| Analog audio output ref. level | +4 dBu/600Ω or more (balanced) |
| Headphones output connector | Standard phone jack |
| Headphones maximum output level | 100 mW at 32Ω (min. load 8Ω) |
| Headphones load impedance | 8Ω or more |
| Digital input connector | XLR-3-31 type |
| Digital input format | Complies to AES/EBU standard |
| Digital output connector | XLR-3-32 type |
| Digital output format | Complies to AES/EBU standard |
| Digital output C-bit | AES/EBU & IEC Consumer (switchable) |
| Timecode input connector | XLR-3-31 type |
| Timecode input format | Complies to AES/EBU specifications |
| Timecode input reference level | 2 Vp-p |
| Timecode input minimum level | 0.25 Vp-p |
| Timecode input impedance | 20 kΩ or higher |
| Timecode reader speed | 1/30~100 times from play speed (Forward/Reverse) |
| Timecode output connector | XLR-3-32 type |
| Timecode output format | Complies to AES/EBU specifications |
| Timecode output reference level | 2 Vp-p |
| Timecode output impedance | 50Ω or higher |
| Timecode thru connector | XLR-3-32 type |
| Timecode thru reference level | Direct output of time code input |
| VITC input connector | BNC type |
| VITC input reference level | 1 Vp-p |
| VITC input impedance | 75Ω ON/OFF (switchable) |
| VITC thru connector | BNC type |
| VITC thru reference level | Direct output of VITC input |
| Word input connector | BNC type |
| Word input reference level | TTL level |
| Word input impedance | 75Ω ON/OFF (switchable) |
| Word thru connector | BNC type |
| Word thru reference level | Direct output of Word input |
| Word output connector | BNC type |
| Word output reference level | TTL level |
| Word output load impedance | 75Ω |
| Video input connector | BNC type |
| Video input reference level | 1 Vp-p |
| Video input impedance | 75Ω ON/OFF (switchable) |
| Video thru connector | BNC type |
| Video thru reference level | Direct output of Video input |
| DAT frame output connector | BNC type |
| DAT frame output reference level | TTL level pulse output |
| DAT frame output load impedance | 75Ω |
| RS-422 connector | D-sub 9 pin |
| RS-422 protocol | Complies to SONY 9 pin Protocol |
| RS-422 device mode | Controlled Device mode |

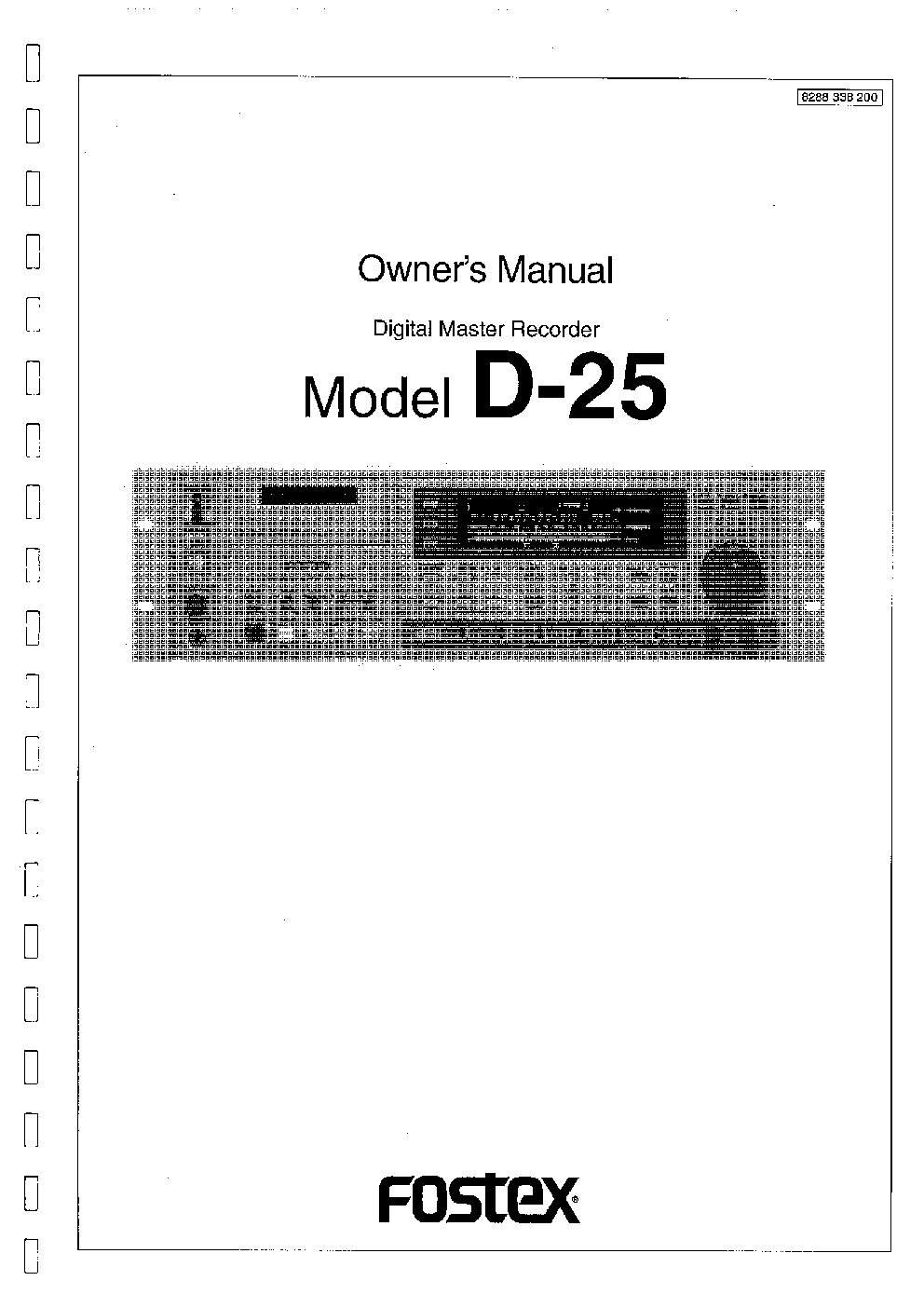

PDF downloads delivered instantly after payment via PayPal. Download links expire 48 hours after purchase.
